BEAM040115-2RS軸承
訂購SKF BEAM040115-2RS軸承，請隨時與我們聯系，我們將根據匯率的波動為您提供實時準確的價格，確保以最優惠的價格為您提供優質的SKF BEAM040115-2RS軸承。
型號：BEAM040115-2RS
品牌：SKF
內徑：40
外徑：115
厚度：46
系列：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
【
手機版 BEAM040115-2RS軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：sales@gzbearing.cn

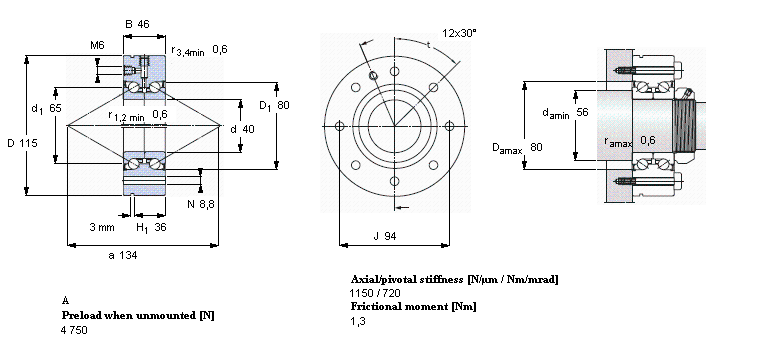

SKF BEAM040115-2RS尺寸圖紙
BEAM040115-2RS軸承基本參數
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 40 | 115 | 46 | 71,5 | 150 | 5,5 | 1800 | 2,20 | BEAM 040115-2RS | BEAM 40/115/C 7P60 | |
角接觸推力球軸承 for screw drives, double direction, for bolt mounting
