BEAM030100-2RS軸承
我們不僅提供SKF BEAM030100-2RS軸承，還提供SKF品牌的其他品牌產品，以及SKF BEAM030100-2RS軸承的替換型號，萬千種型號，任您選擇。
型號：BEAM030100-2RS
品牌：SKF
內徑：30
外徑：100
厚度：38
系列：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
【
手機版 BEAM030100-2RS軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：sales@gzbearing.cn

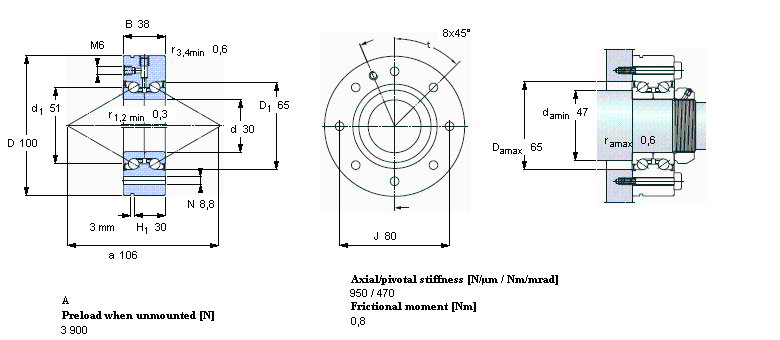

SKF BEAM030100-2RS尺寸圖紙
BEAM030100-2RS軸承基本參數
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 30 | 100 | 38 | 60 | 108 | 4 | 2600 | 1,65 | BEAM 030100-2RS | BEAM 30/100/C 7P60 | |
角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- 品牌
- 型號
- 內徑
- 外徑
- 厚度
- 系列
- SKF
- BEAM017062-2Z/PE軸承
- 17
- 62
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM017062-2Z軸承
- 17
- 62
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM017062-2RS/PE軸承
- 17
- 62
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM017062-2RS軸承
- 17
- 62
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM012055-2Z軸承
- 12
- 55
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM012055-2RS軸承
- 12
- 55
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM020068-2Z軸承
- 20
- 68
- 28
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM020068-2RS/PE軸承
- 20
- 68
- 28
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
相同內徑*外徑*厚度—30*100*38
- 品牌
- 型號
- 內徑
- 外徑
- 厚度
- 系列
- SKF
- BEAM030100-2Z軸承
- 30
- 100
- 38
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM030100-2RS軸承
- 30
- 100
- 38
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- INA
- ZKLF30100-2Z軸承
- 30
- 100
- 38
- 推力角接觸球軸承
- INA
- ZKLF30100-2RS軸承
- 30
- 100
- 38
- 推力角接觸球軸承
- FAG
- ZKLF30100-2Z軸承
- 30
- 100
- 38
- 推力角接觸球軸承
- FAG
- ZKLF30100-2RS軸承
- 30
- 100
- 38
- 推力角接觸球軸承
